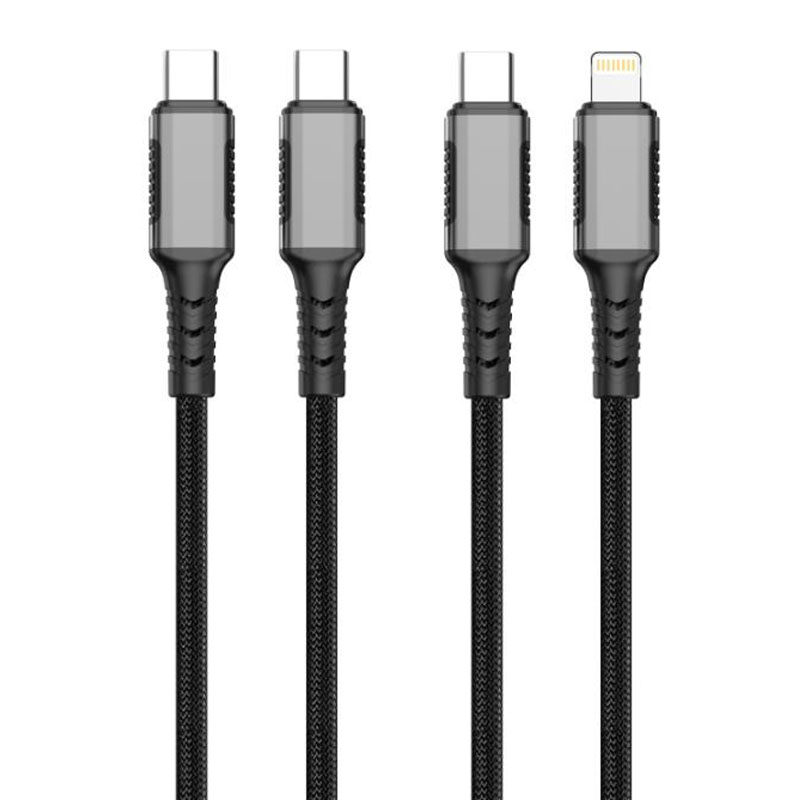

ST154 Fast Charging Data Cable 60W Type-C to Type-C /30W Type-C to Lightning

ST154 Integrated Injection-Molded Braided Fast-Charging Data Cable

Product Overview
The ST154 series adopts an innovative integrated injection-molding process that seamlessly combines a TPE buffer layer, a 48-strand braided outer layer, and aluminum alloy connectors, achieving a comprehensive enhancement in cable strength and durability. This series offers four connector specifications (USB to Lightning/Micro/Type-C, as well as Type-C to Type-C/Type-C to Lightning). Each connector type is available as a separate SKU; please select the corresponding model based on your device requirements.

Key Specifications

• Length: 1 meter

• Material: Integrated injection-molded TPE inner layer + 48-strand braided outer layer + Aluminum alloy connectors

• Colors: Classic Black / Pure White

• Performance Specifications:

• USB to Micro/Lightning/Type-C variants: Support 5V/2.4A (up to 12W) charging and data transfer

• 60W Type-C to Type-C variant: Supports 20V/3A (up to 60W) PD fast charging

• 30W Type-C to Lightning variant: Supports 9V/3A (up to 30W) fast charging

• Full Series Functionality: All variants support simultaneous charging and data transfer

Key Selling Points

1. Integrated Injection-Molded Structure

• Utilizes in-mold integrated injection-molding technology, where the TPE inner layer and braided outer layer are tightly fused without seams or delamination.

• Triple injection molding reinforcement at the junction between the connectors and cable body completely eliminates issues like breakage or detachment common in traditional cables.

2. Damage and Loss Prevention Design

• The integrated structure of the cable body and connectors prevents internal wire breakage caused by frequent bending.

• The connectors feature a secure snap-fit design that locks firmly in place after insertion, significantly reducing the risk of accidental disconnection.

3. 48-Strand Braided Reinforced Protection

• The outer layer employs a dense braiding process to enhance resistance to pulling, abrasion, and tangling.

• The braided layer and TPE inner layer are bonded through a thermal fusion process, ensuring no separation between layers.

4. Intelligent Fast Charging with Full Compatibility

• Automatically recognizes device charging protocols and intelligently matches the optimal charging solution.

• Supports mainstream fast-charging protocols such as PD and QC, delivering up to 60W high-power output.

Use Cases

• Outdoor and travel scenarios where cables are frequently moved and prone to damage.

• Office and home environments with frequent plugging and unplugging of multiple devices.

• Industrial and automotive applications requiring high cable durability.

• Mobile device users who need to prevent accidental disconnection of charging cables.

Technical Features

• Injection Molded Bond Strength: ≥70N tensile test

• Bend Life: ≥20,000 bend cycle tests

• Connector Plug/Unplug Lifespan: ≥15,000 cycles

• Operating Temperature Range: -30°C to 70°C

Usage and Maintenance Recommendations

1. Avoid scratching the braided surface with sharp objects to protect the outer layer.

2. Prevent prolonged immersion or exposure of the injection-molded connector area to corrosive liquids.

3. When storing, it is recommended to coil the cable smoothly, avoiding repeated bending at the same spot.

4. If the cable body becomes stained, gently wipe it with a damp cloth.
