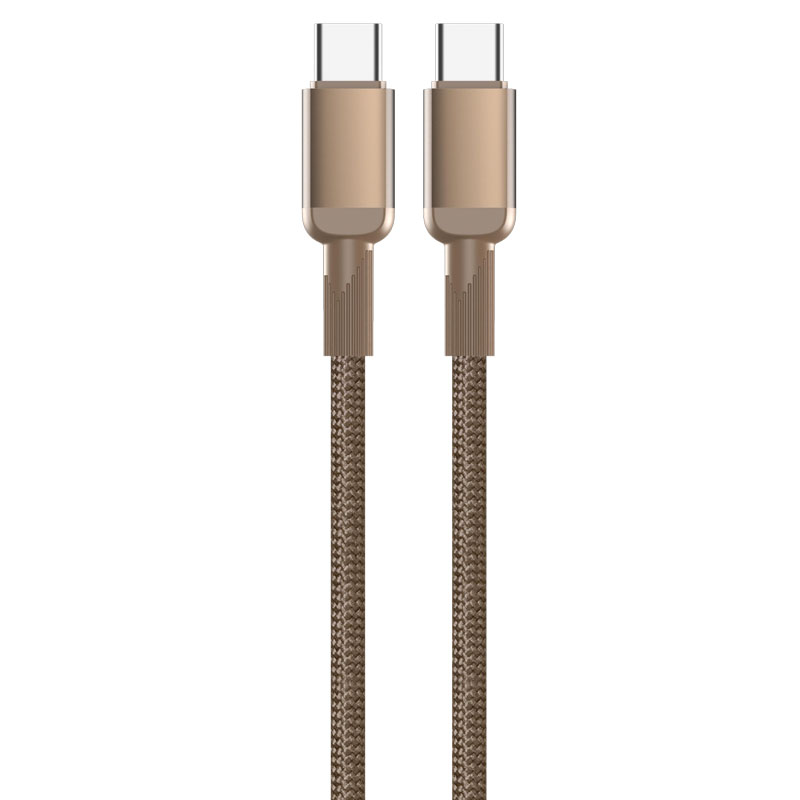

ST317 Fast charging data cable 60W Type-C to Type-C /30W Type-C to Lightning

ST317 Titanium-Colored Braided Fast-Charging Data Cable

Product Overview
The ST317 series is a professional-grade fast-charging data cable that combines the texture of titanium metal with precision braiding technology. Featuring unique titanium metal coating treatment and a robust structural design, it delivers efficient charging and stable data transfer while presenting a low-key yet tech-savvy industrial aesthetic. This series offers four independent connector models: USB to Lightning/Micro/Type-C, Type-C to Type-C, and Type-C to Lightning. Each model is available as a separate SKU, allowing users to make precise selections based on their device requirements.

Key Specifications

• Length: 1 meter

• Material Structure: 96-strand twill braided outer layer + Aluminum alloy with titanium metal coating

• Colors: Mystic Iron Black / Titanium Coffee Gold

• Internal Wire Structure:

• USB to Micro/Lightning/Type-C variants: (43/0.08BS+250D)*2C + (10/0.08BS+250D)*2C

• 60W Type-C to Type-C / 30W Type-C to Lightning variants: (55/0.08BS+250D)*2C + (16/0.08BS+250D)*3C

Performance Specifications

• USB to Micro/Lightning/Type-C Variants: Support 5V/2.4A (12W) charging and data transfer

• 60W Type-C to Type-C Variant: Supports 20V/3A (60W) PD fast charging

• 30W Type-C to Lightning Variant: Supports 9V/3A (30W) fast charging

• Full Series Functionality: All variants support simultaneous charging and data transfer

Key Selling Points

1. Titanium Metal Coating Industrial Texture

• Connectors feature a multi-layer PVD ion-plated titanium process, presenting a refined metallic texture and gradient sheen.

• The Titanium Coffee Gold variant undergoes dual anodizing and micro-arc oxidation treatments for durable, wear-resistant coloration.

• Surface hardness reaches H-grade pencil hardness, offering excellent scratch resistance.

2. 96-Strand Twill Precision Braiding

• Utilizes a 32-spindle precision braiding machine for 45° twill weaving, enhancing overall torsional resistance.

• Braiding density reaches 1400 meshes per square inch, providing exceptional tensile and wear resistance.

• Inner layer includes Kevlar fiber reinforcement, achieving a tensile strength exceeding 100N.

3. Intelligent Power Dynamic Regulation

• Built-in smart recognition chip automatically matches mainstream fast-charging protocols such as PD3.0, QC4+, and AFC.

• Supports up to 60W high-power output with a cable resistance below 0.05Ω under full load.

• Internal temperature monitoring points in the connectors enable real-time output power adjustment to maintain safe temperature control.

4. Durable Structure and Detail-Oriented Design

• The junction between connectors and cable body features a quadruple stress relief structure, achieving a bending lifespan of 10,000 cycles.

• Internal silver-plated copper core wires improve conductivity by 15% compared to standard copper wires.

• The braided layer is treated for anti-static properties, with surface resistance controlled between 10^8 and 10^10Ω.

Use Cases

• Industrial design studios and product development testing environments.

• Professional mobile office device charging for business professionals.

• Scenarios requiring high durability, such as in-car and outdoor use.

• Tech enthusiasts who prioritize metallic texture and practical performance.

Technical Features

• Coating Hardness: ≥9H (pencil hardness test)

• Operating Temperature: -40°C to 80°C

• Connector Plug/Unplug Lifespan: ≥12,000 cycles

• Cable Flame Retardancy Rating: UL94 V-0

• Braided Layer Abrasion Resistance: 10,000 Martindale test cycles

Usage and Care Recommendations

1. Avoid storing with sharp metal objects to prevent coating scratches.

2. Use specialized metal cleaning cloths for surface maintenance.

3. For in-car use, use fixing clips to reduce connector vibration and wear.

4. During long-term storage, keep in a dry environment to preserve coating luster.
