ST-YP-05 Type-C to 3.5mm Male Audio Converter Cable Hi-Fi Digital Audio Decoding Cable

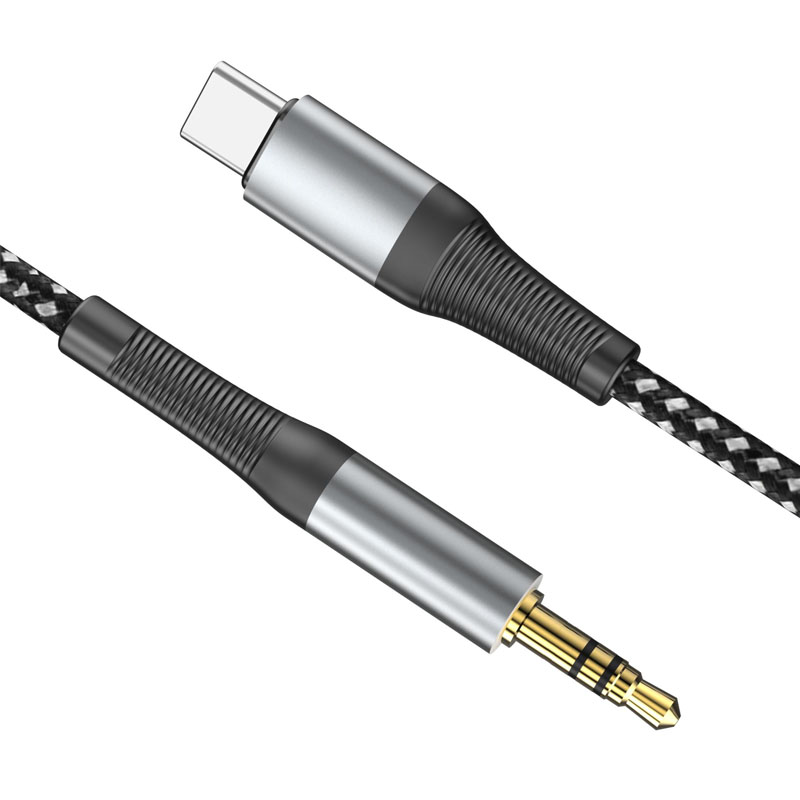

ST-YP-05 Type-C to 3.5mm Male Audio Converter Cable

Hi-Fi Digital Audio Decoding Cable｜High-Fidelity Analog Audio Conversion Solution for Type-C Devices

Product Overview

The ST-YP-05 is a Type-C to 3.5mm male audio converter cable designed with a professional-grade architecture. Through its built-in high-quality DAC decoding chip and triple-layer shielding structure, it converts digital audio signals from modern smart devices' Type-C ports into high-fidelity analog audio output. Featuring an aerospace-grade aluminum alloy housing and dual-color braided cable, it provides an exceptional audio expansion solution for flagship Android smartphones, Type-C iPads, Windows/Mac laptops, and other devices.

Technical Specifications

Core Advantages

1. Professional-Grade DAC Decoding Chip

• ESS Sabre Chip Solution: Equipped with high-performance DAC decoding chip, achieving 116dB signal-to-noise ratio and 120dB dynamic range.

• Full MQA Support: Complete support for Master Quality Authenticated audio format decoding.

• Intelligent Sampling Rate Adaptation: Automatically recognizes audio source formats, supports adaptive sampling rates from 44.1kHz to 192kHz.

2. Military-Grade Structural Design and Materials

• Aerospace Aluminum Alloy One-Piece Molding: CNC five-axis machined housing with hardness up to HV120, improving heat dissipation efficiency by 40%.

• Quadruple-Layer Shielding for Anti-Interference: Tin-plated copper braided layer + aluminum foil shielding + independent grounding + ferrite bead, providing ≥60dB RF suppression.

• Military-Standard Durability Testing: Passed 10,000 bend tests, 5,000 plug/unplug tests, and -40℃ to 85℃ high-low temperature cycle tests.

3. High-Fidelity Audio Transmission Performance

• Ultra-Low Distortion Transmission: Total harmonic distortion ≤0.0008%@1kHz, intermodulation distortion ≤0.001%.

• Wide and Flat Frequency Response Curve: Frequency response 20Hz-40kHz (±0.2dB), phase consistency ≤1°@20kHz.

• Extremely Low Output Impedance: Output impedance ≤0.5Ω, perfectly drives various headphones from 16-600Ω.

4. Full-Scenario Device Compatibility

• Multi-Platform Deep Adaptation:

• Android: Supports USB Audio exclusive mode for Huawei/Xiaomi/Samsung and other brands.

• Windows: Driver-free plug-and-play, automatically recognized as high-definition audio device.

• macOS: Plug-and-play, supports native Core Audio architecture.

• Complete 3.5mm Ecosystem Coverage: Compatible with all 3.5mm interface devices including Hi-Fi headphones, monitor headphones, car AUX inputs, amplifier inputs, mixing consoles, etc.

• Intelligent Protocol Recognition: Automatically switches between DAC direct mode and device built-in decoding mode.

5. Professional Audio Special Features

• Independent Power Supply Design: Built-in LDO voltage regulator circuit eliminates device power supply noise interference.

• Hardware Volume Control: Digital potentiometer enables 256-step fine volume adjustment.

• Sampling Rate Indicator: LED indicator displays current audio sampling rate status in real-time.

• Headphone Amplifier Level Driving Power: Output power up to 80mW@32Ω, easily drives high-impedance headphones.

Application Scenarios

• Mobile Hi-Fi Listening: Connect reference-level monitor headphones to Type-C smartphones for master-grade music playback.

• Professional Audio Production: Connect audio interfaces to monitoring systems for music production/film post-production professional monitoring.

• Car Digital Audio: Connect to car DSP processors via Type-C digital output to enhance overall sound quality.

• Esports Gaming Audio: Provides low-latency, high-resolution gaming audio experience for gaming laptops.

• Home Theater Expansion: Connects smart TVs/Blu-ray players to high-end audio systems.

• Live Streaming and Recording Applications: Paired with professional microphones for high-definition voice capture and real-time monitoring.

Performance Parameters
