ST93 PD100W data cable PD Type-C to Type-C 100W/Type-C to Type-C 60W/Type-C to Lightning 30W

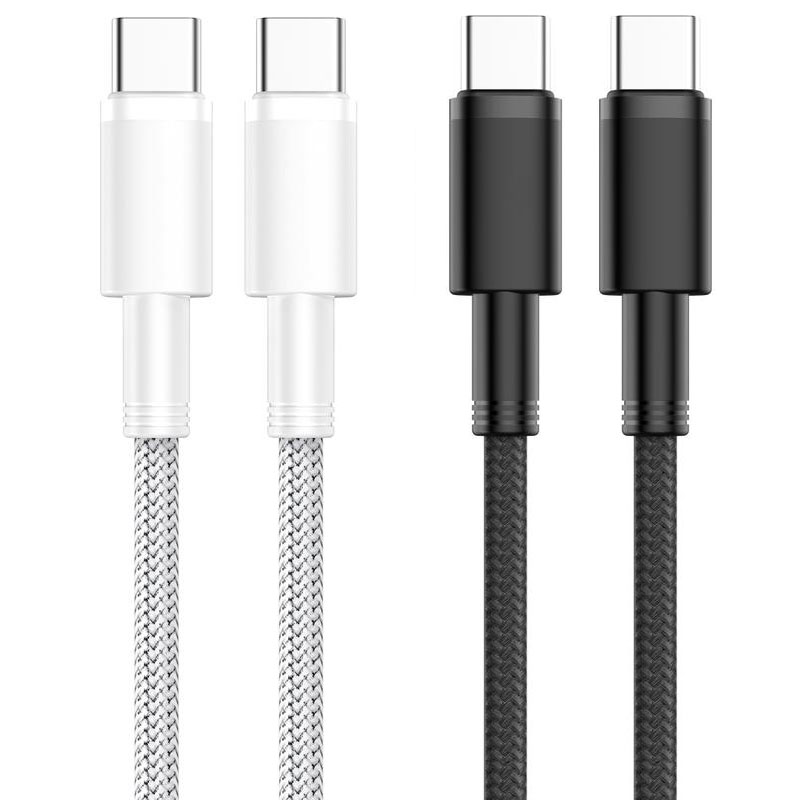

ST93 100W PD Full-Black High-Gloss Matte Braided Fast Charging Data Cable

Product Overview
The ST93 series is a high-performance fast charging data cable featuring an all-black high-gloss matte finish. Through a multi-layer coating process, it creates a unique glossy reflective effect on the aluminum alloy connector surface, providing multi-level fast charging at 100W/60W/30W while presenting a deep and textured visual aesthetic. This series offers three specification models: 100W Type-C to Type-C, 60W Type-C to Type-C, and 30W Type-C to Lightning. Each model is available as an independent SKU, specifically designed for laptops and high-performance devices requiring over 60W charging power, while supporting 480Mbps high-speed data transmission.

Key Specifications

• Length: 1 meter

• Material Structure: 96-strand high-density braided layer + Multi-layer coated aluminum alloy connectors

• Color: Onyx Full-Black (high-gloss matte texture)

• Performance Specifications:

• 100W Type-C to Type-C model: Supports 20V/5A (100W) PD fast charging

• 60W Type-C to Type-C model: Supports 20V/3A (60W) PD fast charging

• 30W Type-C to Lightning model: Supports 9V/3A (30W) fast charging

• Internal Wire Structure:

• 100W model: (45/0.08BS+250D)*4C + (16/0.08BS+250D)*4C

• 60W/30W models: (55/0.08BS+250D)*2C + (16/0.08BS+250D)*3C

Key Selling Points

1. All-Black High-Gloss Matte Multi-Layer Coating Process

• Connectors are made from 6061 aviation-grade aluminum alloy using CNC one-piece molding, with a seven-step coating treatment creating a unique high-gloss matte texture.

• Diamond-like carbon film is applied via physical vapor deposition (PVD) technology, achieving a surface hardness of HV1500 and improving wear resistance by 300%.

• Light reflectance is precisely controlled, presenting dynamic visual effects from matte black to mirror reflection at different angles.

2. 100W High-Power Professional Power Supply System

• Specifically designed for high-performance laptops requiring over 60W (e.g., MacBook Pro 16”, gaming laptops, mobile workstations).

• Four-core parallel power architecture supports stable 5A high-current transmission, with line loss below 2% at 100W full load.

• Intelligent power management system monitors device load in real-time and dynamically adjusts output voltage (5V/9V/12V/15V/20V).

3. 480Mbps High-Speed Data Transmission

• Supports USB 2.0 data transmission standard with a theoretical transfer rate of 480Mbps, transferring a 1GB video file in approximately 24 seconds.

• Four-core independently shielded data channels improve signal integrity by 40% compared to conventional designs.

• Compatible with DisplayPort Alt Mode for 4K@60Hz video signal transmission (requires device support).

4. Three-Layer Composite Thermal Management Structure

• Inner Layer: Nano-ceramic coated insulation material with a thermal conductivity of 1.5W/m·K, quickly dissipating heat generated by high current.

• Middle Layer: 96-strand twill braiding includes copper foil shielding mesh, providing both electromagnetic shielding and heat dissipation functions.

• Outer Layer: Multi-layer coated aluminum alloy connectors increase heat dissipation area by 200% compared to traditional designs.

Use Cases

• Full-power charging for 16-inch MacBook Pro, high-performance gaming laptops, and mobile workstations.

• Professional creative environments involving large file transfers such as video editing and 3D rendering.

• High-definition video signal transmission for Type-C interface monitors and docking stations.

• Business professionals and designers with high requirements for device appearance and texture.

Technical Features

• Coating Hardness: HV1500 (diamond-like carbon film)

• Operating Temperature: -30°C to 70°C

• Data Transmission: USB 2.0, 480Mbps

• Maximum Continuous Current: 5A (100W model)

• Connector Plug/Unplug Lifespan: ≥12,000 cycles

Performance Test Data

• Charging Efficiency: 97%@100W full load (20V/5A)

• Data Speed: 1GB file transfer in 23.8 seconds (average test result)

• Temperature Rise Control: <18°C connector temperature rise after 1 hour of full load

• Bend Life: Passes 10,000 bend tests

Optical Characteristics

• Surface Gloss: 85GU (measured at 60° angle)

• Reflectance: 15%–25% (varies with viewing angle)

• Wear Resistance Grade: Passes 10,000 steel wool friction tests

Usage and Maintenance

1. When cleaning, use a dedicated microfiber cloth and wipe gently along the coating texture direction.

2. Avoid collisions with hard objects to prevent scratches on the coated surface.

3. For 100W fast charging, use with the original or certified 100W PD charger.

4. For long-term storage, keep in an anti-static bag.
