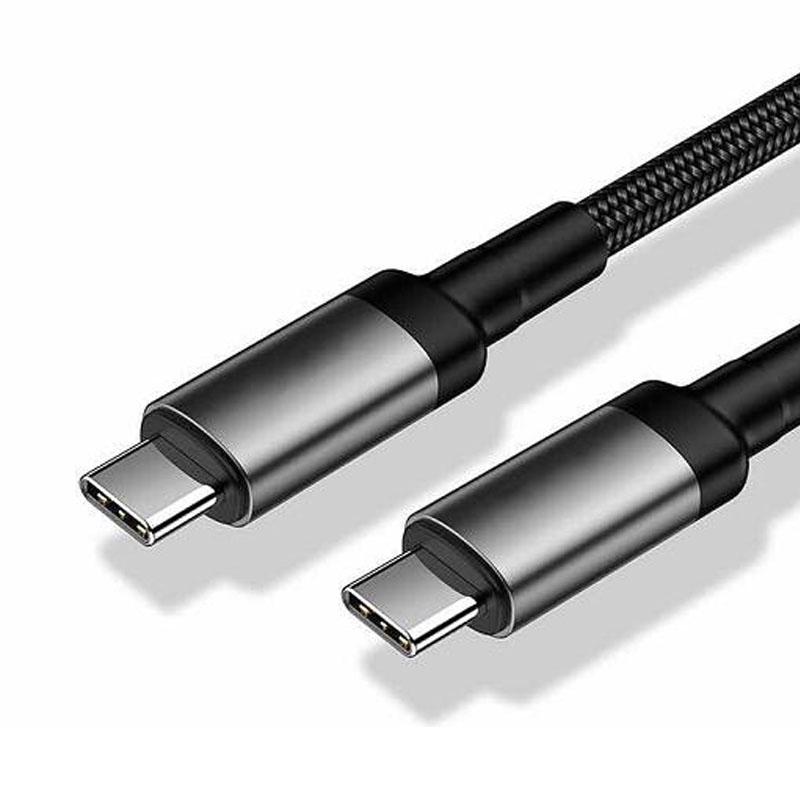

ST95 PD100W Fast charging data cable 100W Type-C to Type-C

ST95 100W PD Mirror-Finish Alloy Fast Charging Data Cable

Product Overview
The ST95 is a 100W PD fast charging data cable specifically designed for high-power laptops and performance devices. Featuring a Type-C to Type-C interface configuration, it supports 20V/5A (100W) high-power fast charging and 480Mbps high-speed data transfer. The product combines a high-gloss mirror-finish aluminum alloy connector, a three-layer composite cable structure, and a four-core parallel transmission architecture, delivering professional-grade power supply capabilities while achieving breakthroughs in both charging efficiency and data transfer speed.

Key Specifications

• Length: 1 meter

• Material Structure: TPE buffer inner layer + 48-strand braided middle layer + High-gloss mirror-finish aluminum alloy connectors

• Colors: Business Black (cable body) / Titanium Space Gray Mirror Finish (connectors)

• Internal Wire Structure: (45/0.08BS+250D) * 4C + (16/0.08BS+250D) * 4C

• Performance Specifications: Supports 20V/5A (100W) PD fast charging, with a data transfer rate of 480Mbps

Key Selling Points

1. 100W High-Power Fast Charging Professional Solution

• Designed specifically for laptops above 60W, high-performance tablets, and high-power mobile devices, supporting 20V/5A (100W) PD fast charging protocol.

• Four-core parallel power channel structure, with single-wire current carrying capacity up to 5A, providing full-speed charging for devices like 16-inch MacBook Pro, high-performance Windows laptops, etc.

• Smart power recognition chip automatically matches device power requirements, supports dynamic power adjustment, ensuring safe and efficient charging.

2. High-Speed Data Transfer Performance

• Supports USB 2.0 data transfer standard, with theoretical transfer rate up to 480Mbps; tested to transfer a 1GB video file in approximately 24 seconds.

• Four-core independently shielded data channel design reduces signal interference by 70%, ensuring stability during large file transfers.

• Compatible with video signal transmission (requires device support), can connect to Type-C interface monitors for workspace expansion.

3. High-Gloss Mirror-Finish Aluminum Alloy Craftsmanship Aesthetics

• Connectors are made from aerospace-grade 6063 aluminum alloy using CNC one-piece molding, featuring an eight-step mirror polishing and anodizing process that presents a premium titanium space gray metallic luster.

• Mirror finish not only enhances visual quality but also provides fingerprint resistance and scratch resistance, maintaining mirror effect even after prolonged use.

• Connector internals use gold-plated contacts with contact resistance <20mΩ, plug/unplug lifespan exceeding 10,000 cycles.

4. Three-Layer Composite Reinforced Structure Design

• Inner Layer: Highly elastic TPE buffer material that absorbs bending stress and protects internal wires.

• Middle Layer: 48-strand twill braiding provides 120N tensile strength, with wear and tangle resistance.

• Outer Layer: High-gloss mirror-finish aluminum alloy connectors, improving heat dissipation efficiency by 300% compared to standard plastic connectors.

Use Cases

• Full-power charging for 16-inch MacBook Pro, high-performance Windows gaming laptops, and mobile workstations.

• Creative work scenarios involving frequent large file transfers (video editing, 3D design, data analysis).

• Connection and power supply for Type-C interface monitors and docking stations.

• Professional office environments requiring simultaneous high-speed data transfer and high-power charging.

Technical Features

• Supported Protocols: PD 3.0 (5V/9V/12V/15V/20V programmable)

• Data Transfer: USB 2.0 standard, 480Mbps

• Maximum Continuous Current: 5A

• Operating Temperature: -20°C to 60°C

• Cable Voltage Drop: <0.5V@5A (under 20V conditions)

Performance Test Data

• Charging Efficiency: 96%@100W full load

• Data Transfer: Approximately 24 seconds for 1GB video file transfer (tested environment)

• Temperature Rise Control: <15°C connector temperature rise after 30 minutes of full load

• Bend Life: No performance degradation after 10,000 bend tests

Usage Recommendations

1. To achieve 100W fast charging performance, use with a charger that supports PD 3.0 100W protocol.

2. During large file transfers, avoid simultaneous high-power charging to ensure transfer stability.

3. Clean mirror-finish connectors with dedicated glasses cloth or microfiber cloth; avoid corrosive cleaners.

4. Avoid storing the cable with sharp objects to prevent damage to the braided layer.
